The 2D/3D split view displays 2D sheets within the 3D environment for a holistic look at your project. You can navigate models with 2D sheets, see related sheets based on your position in the model, and see issues in 2D and 3D simultaneously. You can also use 3D Overlays together with split view for further context.

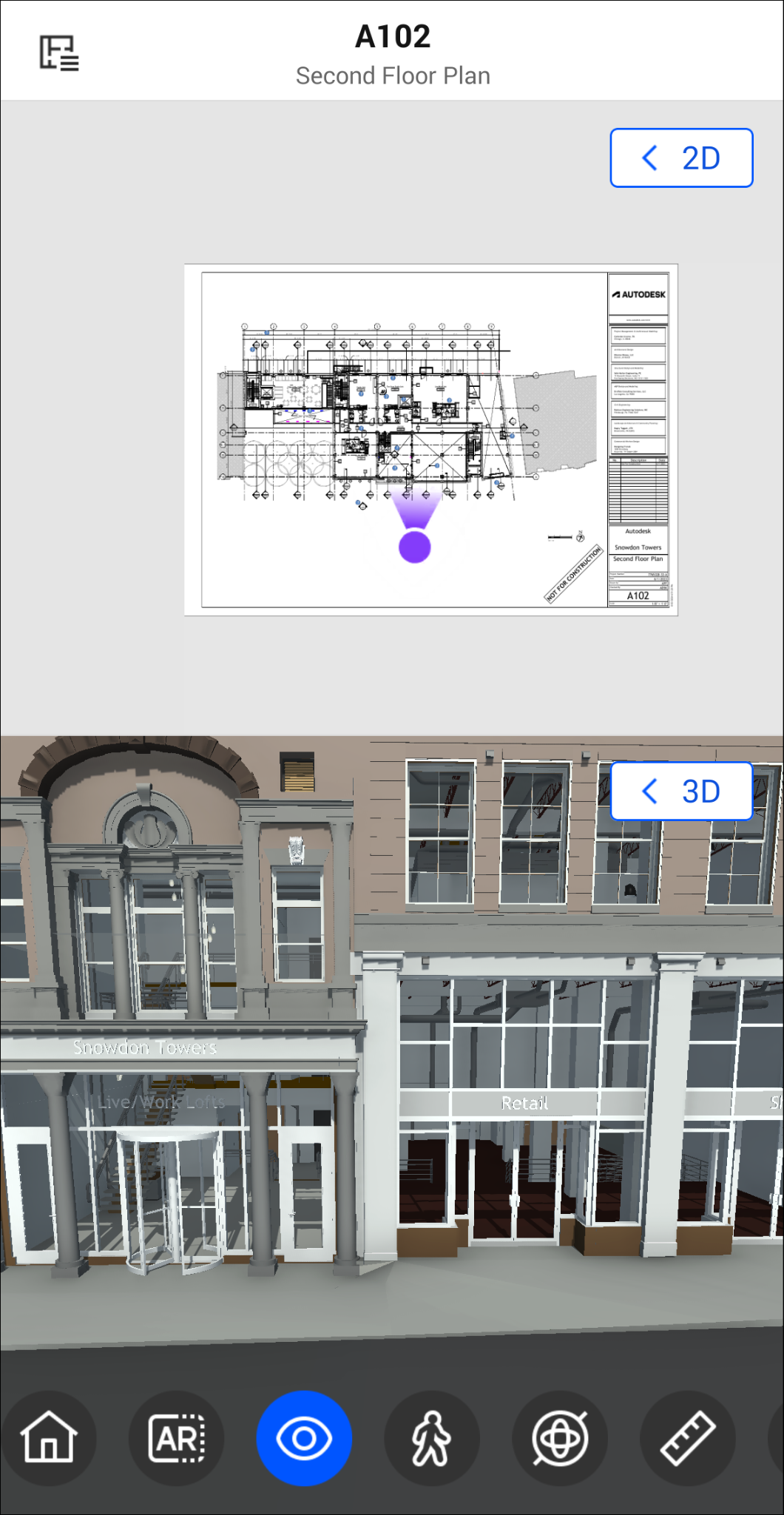

Split view is available in Revizto desktop, the Revizto 5 mobile app, and Revizto Site.
Accessing 2D/3D split view
Split view requires a 2D sheet and 3D model of your project to be imported to Revizto. To learn how to import files see Importing sheets and Importing models from files.

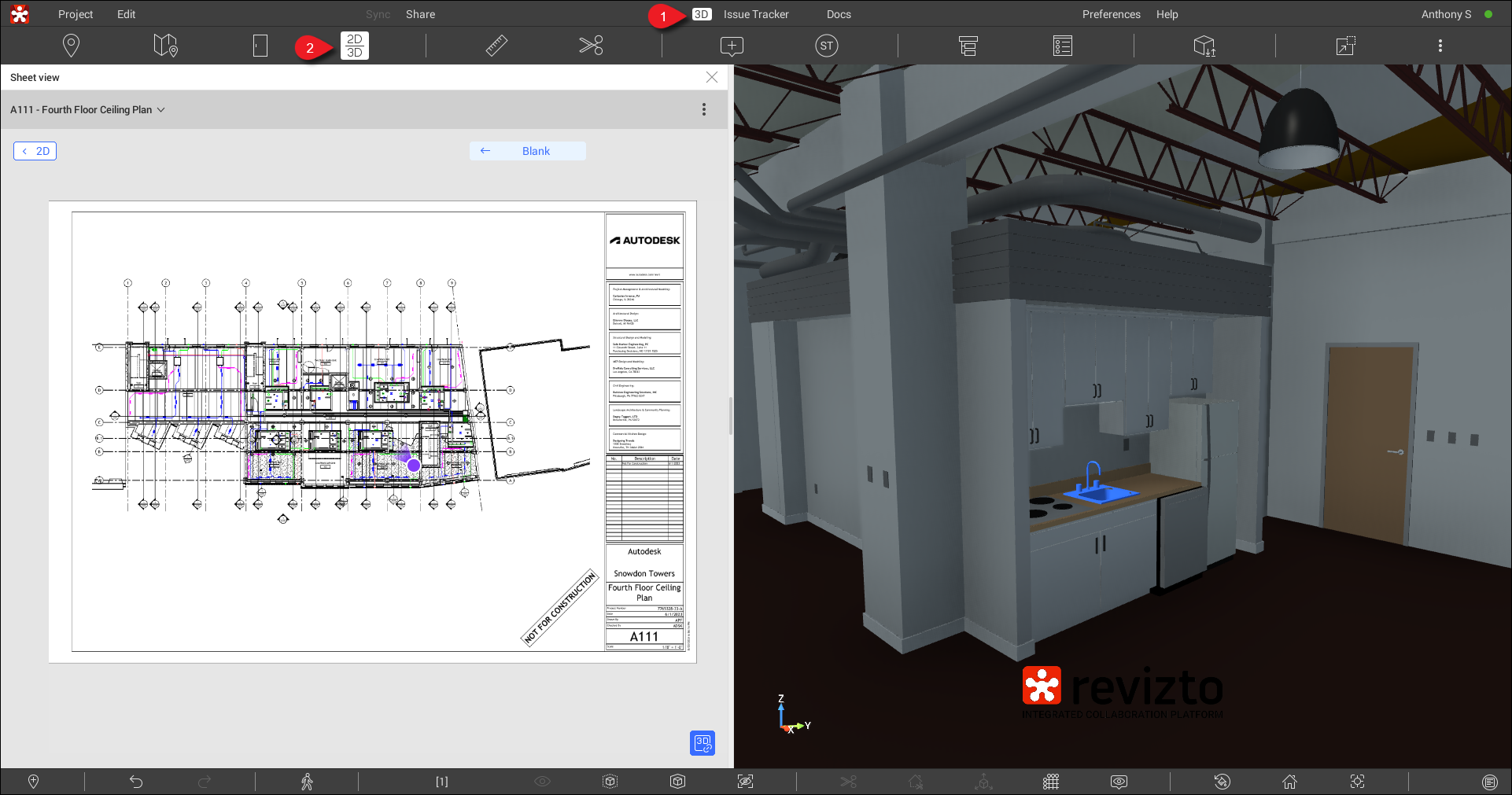

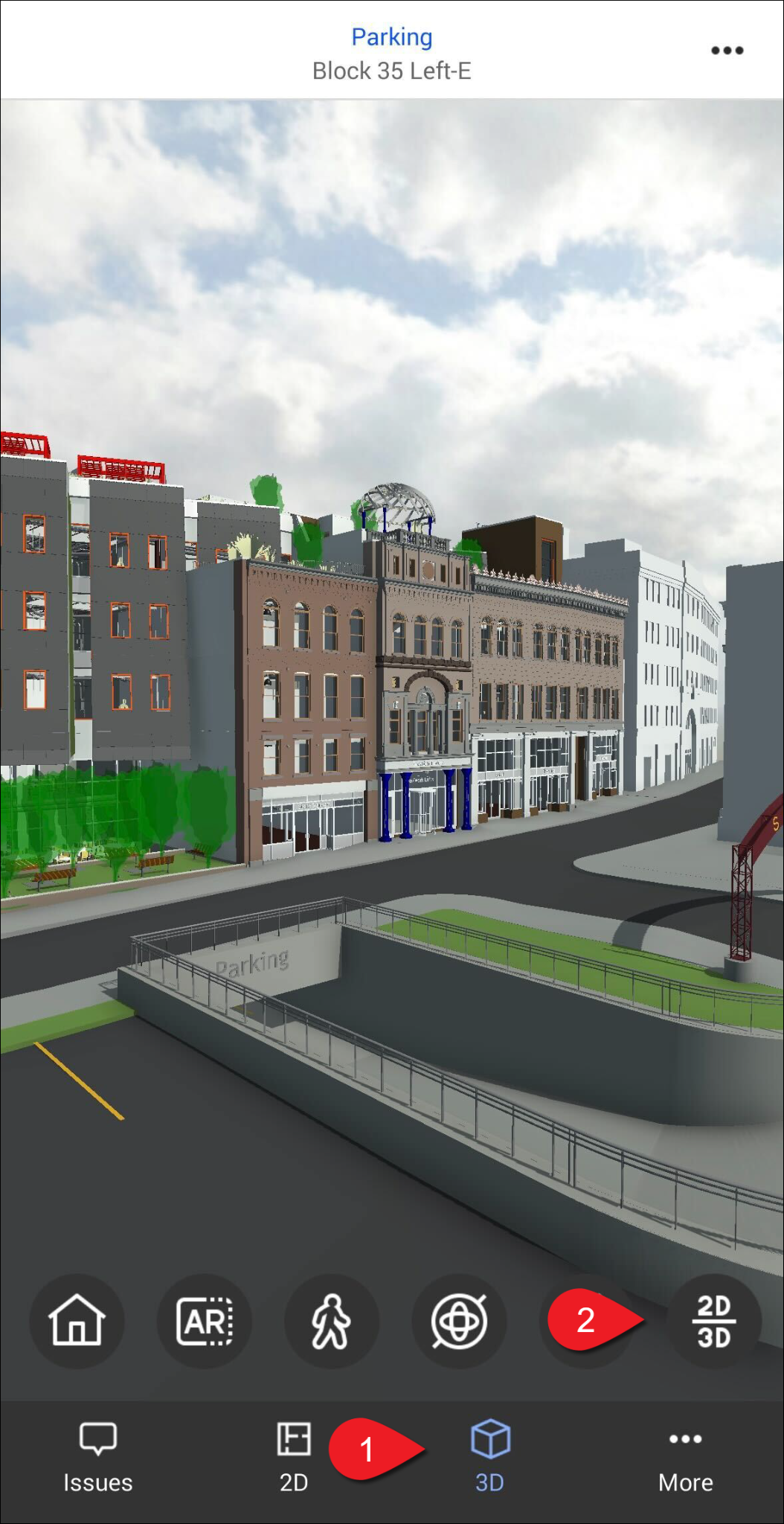

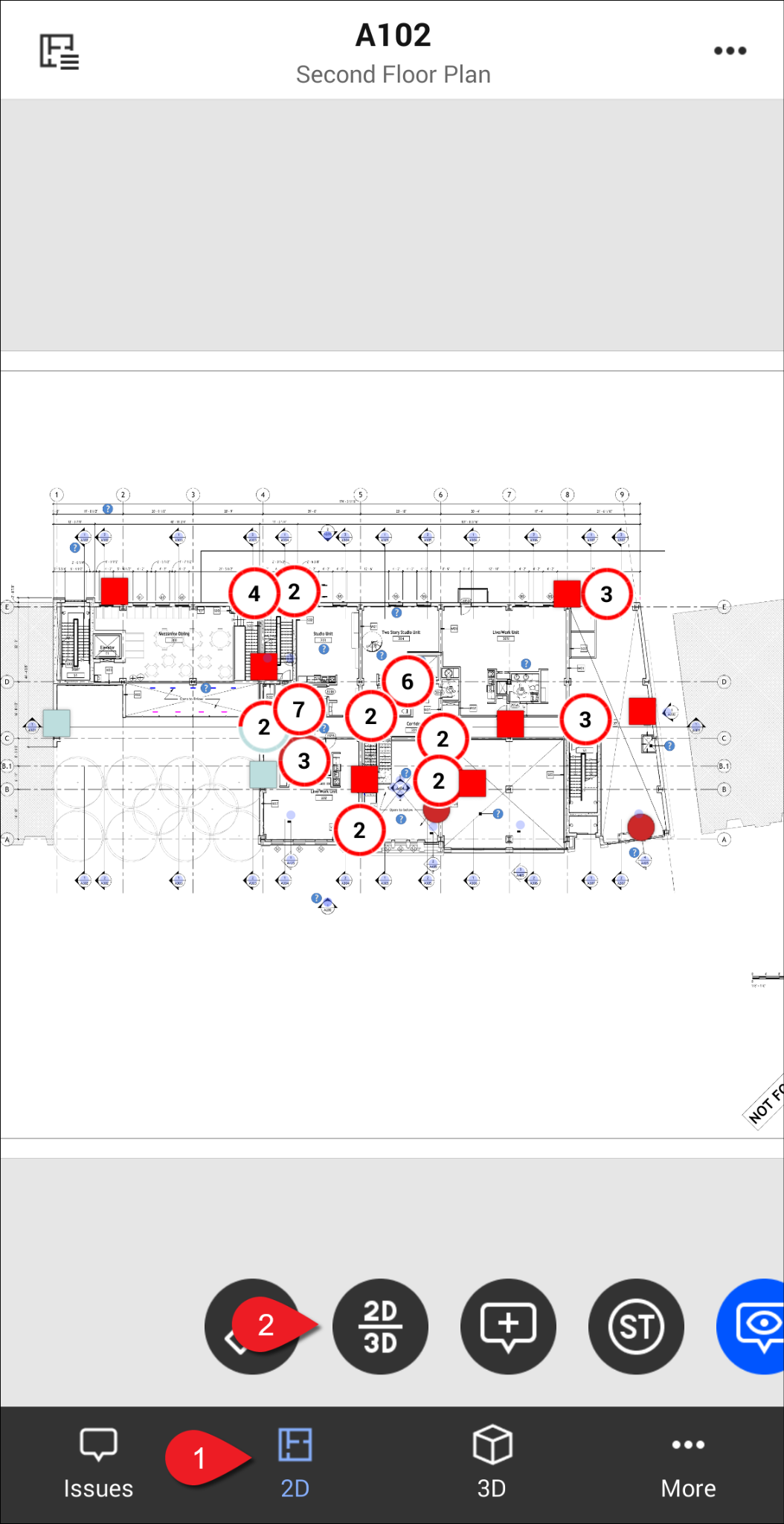

To access in the Revizto 5 desktop and mobile applications:
- Open the 3D environment by clicking 3D on the primary tool bar.
- Select 2D/3D split. The last sheet you viewed will open in the Sheet view window within the 3D environment or you will be prompted to select a sheet.
To access in Revizto Site:
- Select either 2D or 3D.
|
|
- Once a sheet or model is selected, both will open for simultaneous viewing.
Sheet view toolbar
The sheet view toolbar offers a quick way to switch between sheets, and change what information is displayed. The toolbar is available in the Revizto 5 mobile and desktop applications.
Sheet view toolbar:
| Sheet selection: This opens the Sheets near your location list. Selecting a sheet from this list will open it in the Sheet view window. | |
|
|
Actions menu: The actions menu allows you to change what is displayed on the sheet between Pins, Markups, or None.
Markups
None
More tools…
|
Navigating the model with split view
The split view allows you to navigate the model by moving the location indicator in the Sheet view window. You can move the indicator by clicking in the 2D sheet, or dragging the location indicator where you want to place it.
| Toggle auto-follow |
When enabled, the sheet view moves to follow the location indicator. This option is located at the bottom right of the Sheet view window. Disabled: |
Changing sheets
As you navigate the model you can change the displayed sheet in the Sheet view. Revizto displays a list of sheets that are relevant to your current location, but you can always choose from all sheets if needed.

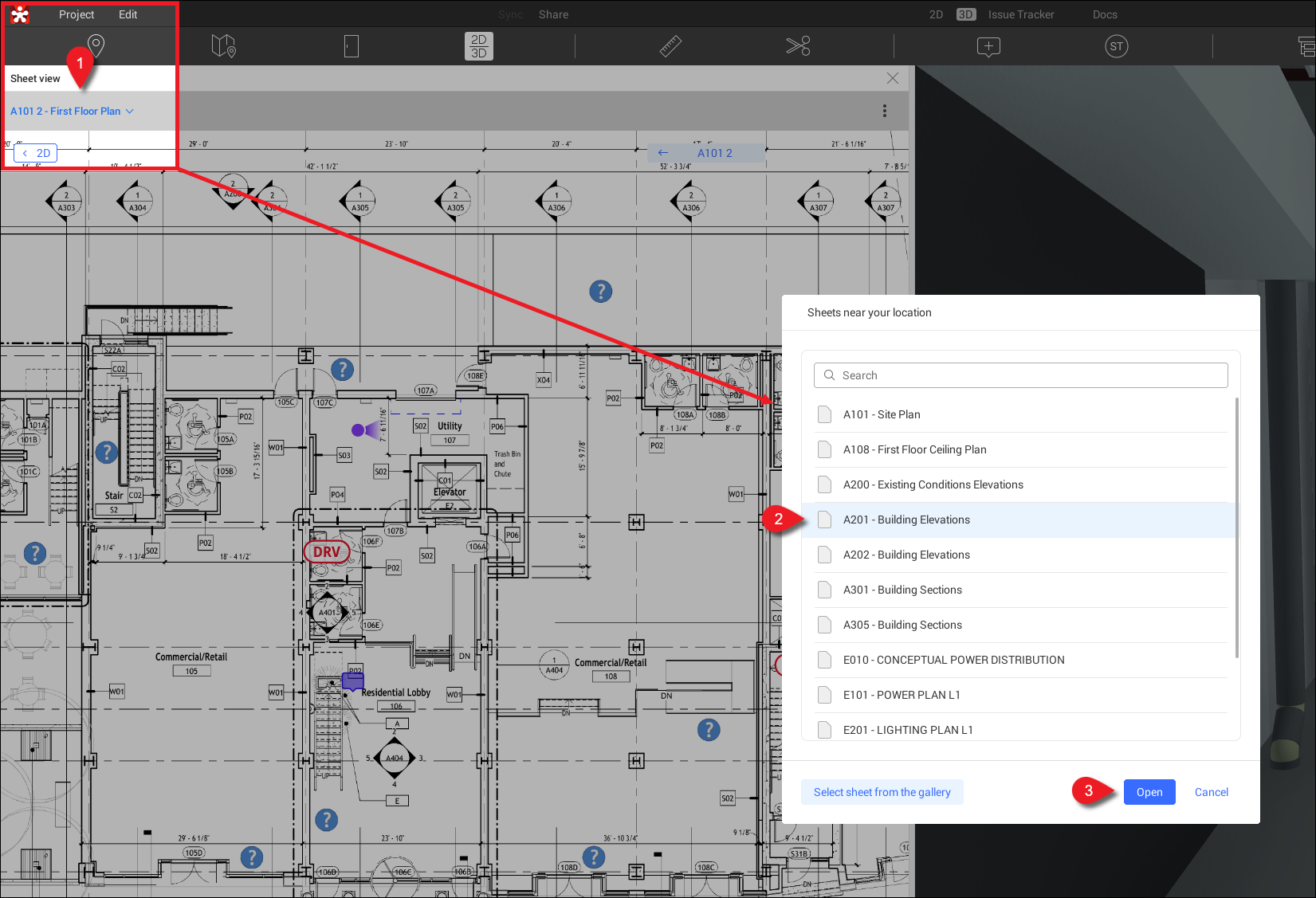

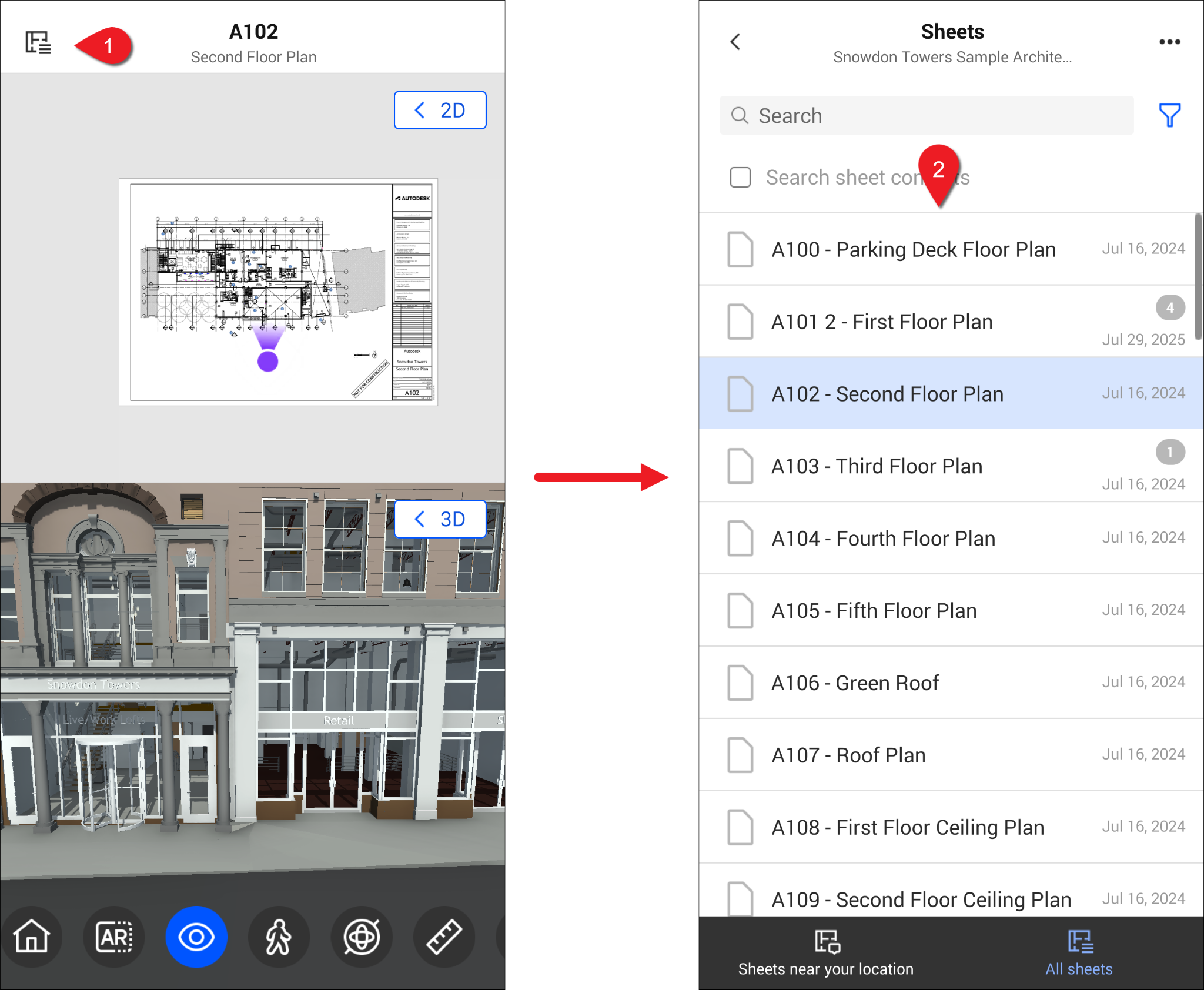

To change sheets in the Revizto 5 desktop and mobile app:
- Click the sheet dropdown, located near the top of the sheet view, to open the Sheets near your location list.
- This list is filtered to sheets near your location in the model and sorted by sheet number.
- Select the sheet you want to open with Split view.
- Click Open.

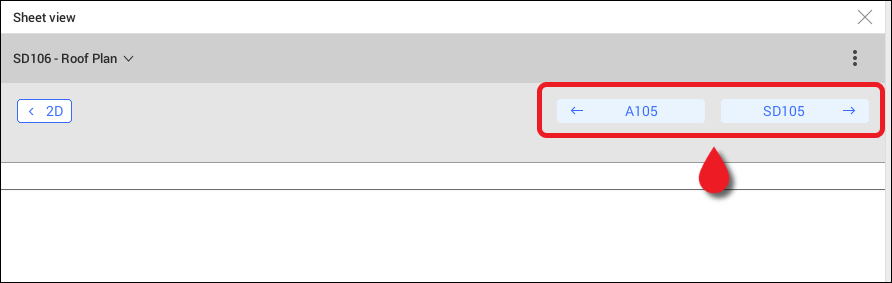

You can change between recently viewed sheets by using
the forward and back buttons located near the top of the
Sheet view.
The buttons only display when you have viewed multiple sheets,
and are labeled
with the sheet numbers.
To change sheets in Revizto Site:
- Select Sheets
to see the Sheets near your location list.
- Select a sheet to open it in the Split view.
- The currently displayed sheet is highlighted in blue.
- You can select the search bar at the top to search sheets by sheet number or name. Selecting the Search sheet contents checkbox will search for text within the sheets instead of by sheet number or name.
- You can view all sheets by selecting All sheets
at the bottom of the screen.
