Rhino plug-in installation Follow

Avatar
David Ray
  • Updated

Models can be directly exported out of Rhino to Revizto. Below is a step by step guide on how to install the plug-in for Rhinoceros.

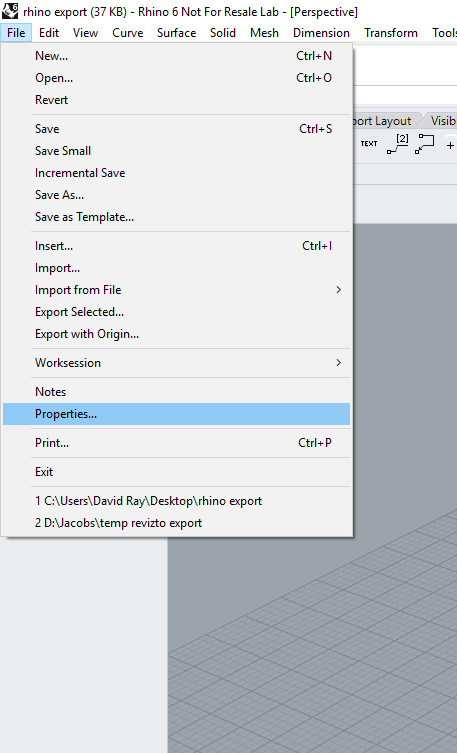

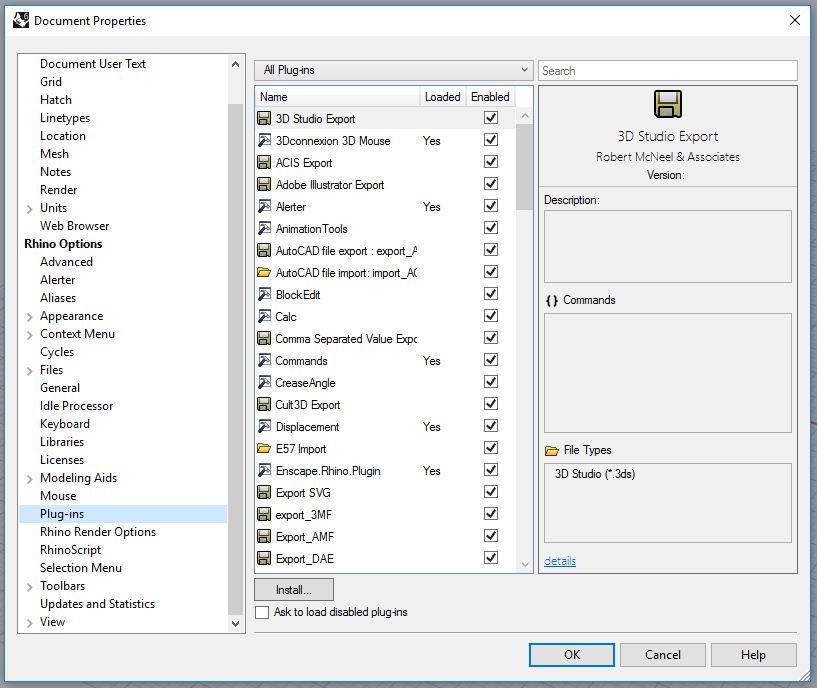

Step 1. From the File Tab, go to Properties > Plug-ins > Click on Install


Step 2. Navigate to the Bin files. The default location is:

  • For Revizto 5.10 or earlier:

    C:\Program files\Vizerra LLC\Revizto5\Bin.

  • For Revizto 5.11 or later:

    C:\Program files\Revizto SA\Revizto5\Bin.

Then find the RhinoReviztoExport5.rhp file.

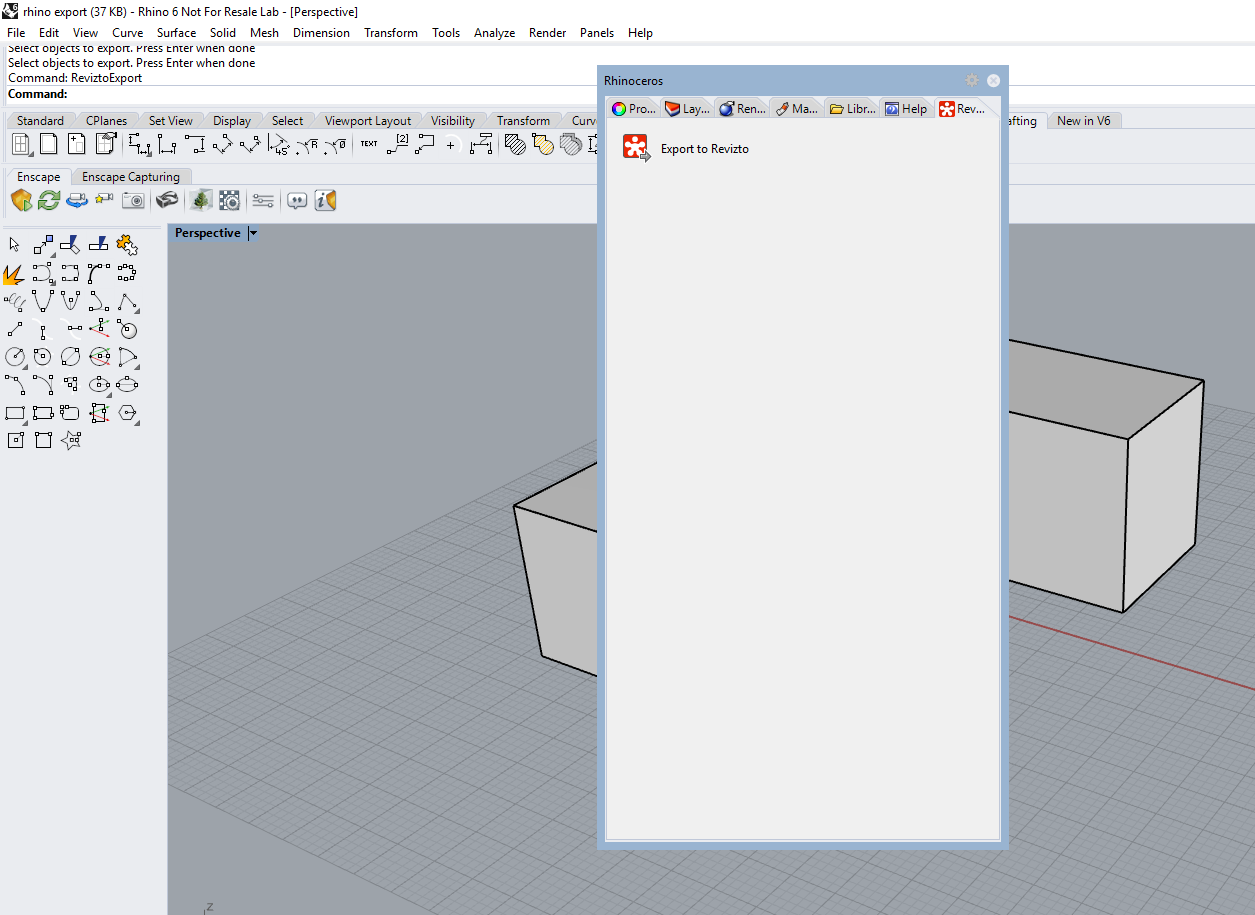

Step 3. After the Plug-in Install, by use of the Export to Revizto command (ReviztoExport) users can now export models to Revizto.
