Installing Revizto plug-in for Bentley products Follow
Revizto installer always attempts to install the Revizto plug-in for the following Bentley products:
- MicroStation CONNECT Edition
- OpenBuildings Designer CONNECT Edition
- OpenRoads Designer CONNECT Edition
However, it might not have enough rights for this, so you might need to install the plug-in manually.
To install the plug-in:
- Add the configuration file to the MicroStation/OpenBuildings/OpenRoads CONNECT Edition folder.
- Add the Revizto plug-in to MicroStation/OpenBuildings/OpenRoads CONNECT Edition.
Adding configuration file to MicroStation/OpenBuildings/OpenRoads CONNECT Edition folder
To add the configuration file:
-
In Revizto installation folder, find ReviztoAddin5.cfg.
The default path is C:\Program Files\Vizerra LLC\Revizto5\ReviztoAddin5.cfg.
-
Copy ReviztoAddin5.cfg to the MicroStation, OpenBuildings, or OpenRoads folder.
Product Default folder MicroStation CONNECT Edition C:\Program Files\Bentley\MicroStation CONNECT Edition\MicroStation\config\appl OpenBuildings Designer CONNECT Edition C:\Program Files\Bentley\OpenBuildings CONNECT Edition\OpenBuildingsDesigner\Config\appl OpenRoads Designer CONNECT Edition C:\Program Files\Bentley\OpenRoads Designer CONNECT Edition\OpenRoadsDesigner\config\appl -
Open ReviztoAddin5.cfg and ensure that the paths to the Revizto folder are correct.
MS_ADDINPATH > C:/Program Files/Vizerra LLC/Revizto5/Bin/
MS_DGNAPPS > ReviztoAddin5
MS_RIBBONXML > C:/Program Files/Vizerra LLC/Revizto5/Bin/ReviztoAddinRibbon5.xml
MS_ICONPATH > C:/Program Files/Vizerra LLC/Revizto5/Bin/
Adding Revizto plug-in to MicroStation/OpenBuildings/OpenRoads CONNECT Edition
To add the Revizto plug-in:
-
In MicroStation, OpenBuildings Designer, or OpenRoads Designer, go to File > Settings > User and select Customize Ribbon.

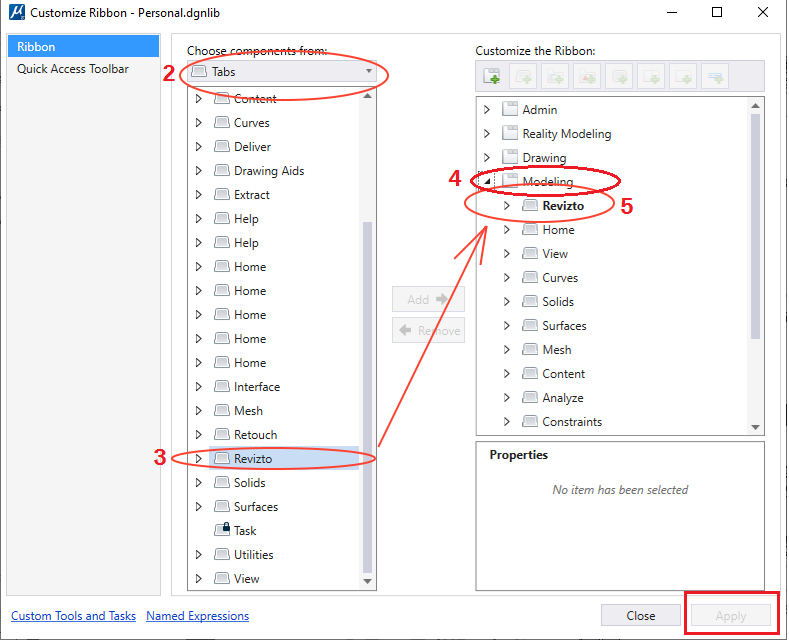

- Drag Revizto from Choose components from > Tabs to Customize the Ribbon > Modeling, and then click Apply.
-

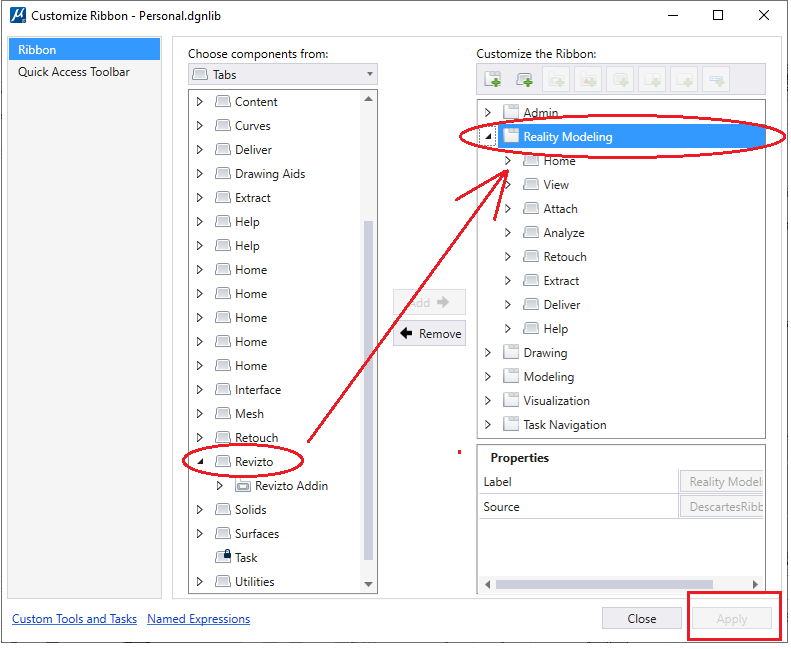

Drag Revizto from Choose components from > Tabs to Customize the Ribbon > Reality Modeling, and then click Apply.
The Revizto plug-in will appear on the Modeling tab.
