Clash test settings Follow
Clash tests include a number of settings to improve the test's automation and precision. Some, but not all, of these settings are available when creating a new clash test. All settings for a clash test, however, can be viewed in the Clash Automation panel by selecting the clash test to open the "Settings" panel. If the "Settings" panel is hidden, at the top of the "Clash Automation" panel, click Clash test settings
.
Users with appropriate rights can edit clash test settings by checking out the clash test , then clicking Edit
or Settings

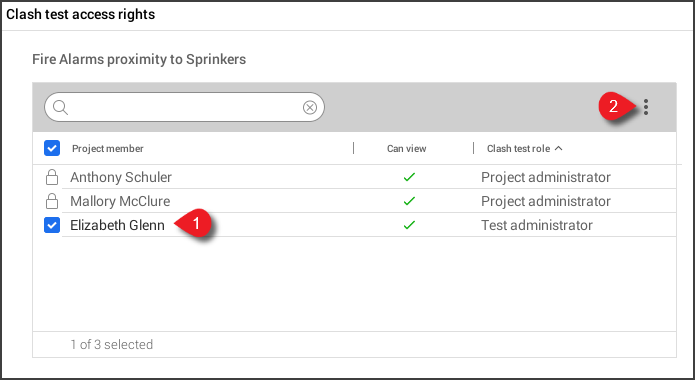

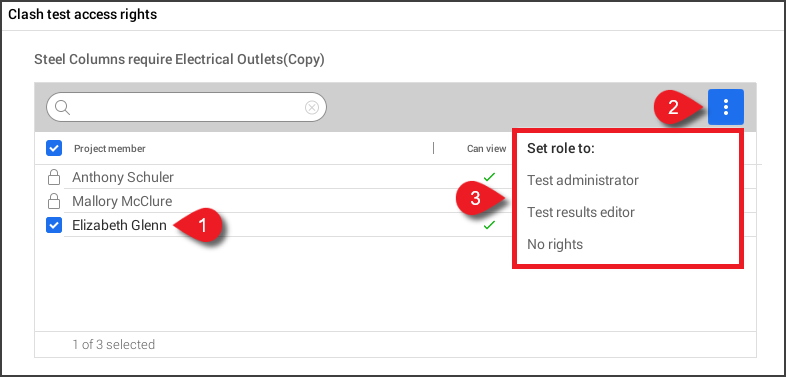

next to the relevant field. You can edit the clash test name, access rights, and labels without checking out the clash test, however all other settings will be view-only if the clash test is not checked out.
For more information on creating and editing clash tests in full, check out the following articles:
- Creating a new clash test
- Viewing and editing clash tests
- Checking out and relinquishing clash tests
The following sections detail each clash test setting.
You can import settings from one clash test into another to quickly update a test with previously defined settings. Most settings can be imported into another test, however some settings will not be compatible between different types of tests which will be noted next to the setting in the "Import clash test settings" window. Settings available for import include: clashing type, rules for ignoring clashes, grouping and groups naming, clash naming, location tags, clash view/issue screenshot, advanced issue automation rules (and location filters), clash test access rights, level model, grid models, and labels.
To import clash test settings:
- At the bottom of the destination clash test's settings panel, click Import settings.
-
- You can also click More
in the toolbar, then Import settings from another clash test.
- You can also click More
- Under From the clash test, select the clash test you want to import settings from.
- Select the settings you want to import.
- Click OK.
Imported settings will overwrite any settings in the same fields in the destination test. Each setting is described in further detail in the sections below.
This is the name given to the clash test. It can be edited by clicking Edit in the upper-right corner of the "Clash test name" field or by clicking More
in the toolbar, then Rename when the clash test is selected. Click OK to save changes.
The clash test’s name will automatically be included in issue titles when clash groups are published to the issue tracker. The recommended name format for clash tests is "A vs B", where A and B describe the selections that are checked for clashes.
Different clash tests can have the same name.
A clash test defines two sets of objects (selections A and B) that are tested for clashing against each other. Each object in selection A is tested for clashing with each object in selection B to perform clash detection.
Selections A and B are generated from search sets during clash detection and the chosen search sets will be listed in the "Selection" field. Selections can be changed by clicking Settings in the upper-right corner of the field. Click Done at the bottom of the window to save changes. Any number of search sets can be selected under selections A and B, however the chosen search sets must be shared.
When creating or editing the selections:
- Selection A includes the search sets selected under "Search sets A" or "Object A" (depending on the clashing type).
- Selection B includes the search sets selected under "Search sets B" or "Required objects B" (depending on the clashing type).
In the search bar of each selection pane, you can search for specific search sets. When choosing search sets for selection, you can search the name or partial name of the search set. You can also use the following wildcards:
- * any number of characters
- ? any character
You can specify conditions for ignoring clashes through selecting predefined conditions or creating conditions for certain search sets and objects. The number of applied conditions, which includes counting each search set as an individual condition, will be listed in the "Ignore clashes" field next to Active rules.
Conditions can be added, removed, or edited by clicking Settings in the upper-right corner of the field. Click OK at the bottom of the window to save changes.
There are three sections in the ignore clashes settings:
Simple conditions
The first section of the "Ignore clashes" window lists simple, preset conditions for ignoring clashes. To apply or remove one, select the condition. These include:
Option | Description |
Ignore duplicates | If a clashing object includes a part of a mesh that is fully identical to a part of a mesh in the other clashing object, the clash is ignored. |
Ignore if both objects are in the same model |
If clashing objects A and B belong to the same Revizto model, the clash is ignored. |
Ignore room objects |
If a clashing object is a room, the clash is ignored. This condition is enabled by default for all clashing types, except "Object A requires object B". |
Ignore area objects |
If a clashing object is an area, the clash is ignored. This condition is enabled by default for all clashing types, except "Object A requires object B". |
Ignore zone objects |
If a clashing object is a zone, the clash is ignored. This condition is enabled by default for all clashing types, except "Object A requires object B". |
Ignore space objects |
If a clashing object is a space, the clash is ignored. This condition is enabled by default for all clashing types, except "Object A requires object B". |
Advanced conditions
The second section of the "Ignore clashes" window has options to create advanced conditions for ignoring clashes. These advanced conditions allow you to select search sets to make them more targeted. When choosing search sets for a condition, you can search the name or partial name of the search set. You can also use the following wildcards:
- * any number of characters
- ? any character
To edit the selected search set in any of these conditions:
- Click edit next to Search sets in the condition you want to apply. Condition types are listed in the table below.
- Select your search sets.
- Click Apply.
Option | Description |
Ignore objects that are in the search sets | If an object belongs to any of the specified search sets, clashes with that object are ignored. |
Ignore objects A that are in the search sets | If an object from selection A belongs to any of the specified search sets, clashes with that object are ignored. |
Ignore objects B that are in the search sets |
If an object from selection B belongs to any of the specified search sets, clashes with that object are ignored. |
You can remove a condition by opening an existing condition for editing and deselecting any selected search sets.
Add conditions
The last section of the "Ignore clashes" window has the option to add conditions for ignoring clashes. There are three types of conditions available, however you can add as many of these conditions as you want, including repeating condition types.
To add a condition:
- At the bottom of the "Ignore clashes" window, click Add condition for ignoring clashes.
- Select the condition type. Condition types are described in the table below.
- Fill in the condition type fields using either the dropdown menu or Edit
.
Option |
Description |
Both objects have the same property value |
If clashing objects A and B have the same value of a specific property, the clash is ignored. To set up the condition, select a category and a property from the dropdown menus. |
Both objects are in the same search set |
If both of the clashing objects belong to the specified search set, the clash is ignored. To set up the condition, click Edit |
Object A and object B are in specific different search sets |
If an object from selection A belongs to search set A and an object from selection B belongs to search set B, clashes with those objects are ignored. To set up the condition, click Edit |
You can remove a condition by clicking X in the upper-right corner of the condition's box.
When creating a new clash test, you will need to select a clashing type. This will dictate what is treated as a clash by clash detection. The applied clashing type and basic settings will be listed in the "Clashing type" field. Clashing types and settings can be edited by clicking Settings in the upper-right corner of the field. Click OK at the bottom of the window to save changes.
The full list of clashing types is only available when creating a new clash test. The clashing types are:
-
Clashes
- Hard clash: Objects clash if they touch or intersect.
- Tolerance: Objects clash if their penetration depth is greater than the tolerance.
-
Clearance
- Clearance: Objects clash if the minimum distance between them is less than the clearance.
- Directly above: Objects clash if the minimum distance above the object is less than the clearance.
- Directly below: Objects clash if the minimum distance below the object is less than the clearance.
- Inside: Objects clash if one object is inside the other.
- Duplicate: Objects clash if identical objects are placed in the same location.
-
Object A requires object B
- Object A requires object B in proximity: Objects clash if the required object (object B) is not near object A.
- Object A requires object B directly above: Objects clash if the required object (object B) is not directly above object A.
- Object A requires object B directly below: Objects clash if the required object (object B) is not directly below object A.
- Object A requires object B inside: Objects clash if the required object (object B) is not inside object A.
Clash tests of the "Object A requires object B" type function differently than other clashing types, as this type tests whether each object in selection A has an object from selection B nearby and reports a clash if the object is not found. For all other clashing types, a clash is reported if the objects collide or intersect.
Once a clash test has been created, the clashing type can be changed to another clashing type that operates the same way (determining if an object is nearby versus determining if there is a collision or intersection). This means clashing types under "Object A requires object B" can only be changed to other clashing types under the same category, while all other clashing types can be changed to any other type except those under "Object A requires object B".
Each clashing type will have individual settings that vary depending on what the clashing type is testing for. Clashing type settings can be edited directly in the "Clashing type" window.
Clashing types include the following settings:
Option | Description | Clashing type with this setting |
Choose what to clash | Select the type of objects that are subject to clash detection:
|
All clashing types |
Ignore clashes within the same element |
Select to ignore clashes if clashing geometries A and B belong to the same element. This option is available only for clash detection between geometries. |
All clashing types |
Treat touching objects/surfaces as clashes |
Select this to consider touching objects as a clash. Depending on the clashing type, this setting will refer to either "objects" or "surfaces". |
|
Treat objects inside other objects as clashes | Select this to consider an object inside another object as a clash. |
|
Horizontal/Vertical | Input the desired horizontal and vertical measurements for clash detection. You can link or unlink the measurements by toggling Link |
|
Surfaces to check | Select the point (top or bottom) on each object (A and B) that is used to measure from for clash detection. Measurement options include all combinations of top and bottom from each object: Top A to bottom B, Bottom A to bottom B, Bottom A to top B, and Top A to top B.
|
|
Choose how to calculate distance between surfaces |
Select how you want to calculate the distance between the two points chosen in Surfaces to check:
This option is available only when the selected Surfaces to check include a top and bottom measurement point. |
|
Clearance | Input the desired clearance measurement for clash detection. |
|
There are three sections in the grouping settings:
If grouping conditions, group ordering, or group naming is updated after clash groups have been synced to the issue tracker, only new or "not reviewed" clash groups will receive the updated grouping or naming. Existing issues will not be updated.
Clash grouping conditions
Grouping conditions are set in the "Group by" window and define how your clashes are grouped. Successful use of grouping conditions can reduce the time required for manual clash analysis and eventually fully automate the creation of clash issues. If no grouping conditions are used, each individual clash will be represented as a group.
It's common to have multiple grouping conditions which compliment each other to help create targeted issues that assignees can resolve. For example, choosing "Level" and "Zone" grouping conditions will create groups that contain clashes from the same level and the same zone. The group "Ground Zone A" will contain clashes from level "Ground" and zone "Zone A".
All new clash tests will have a proximity grouping condition set to 15m (or 49.2126ft) added by default. This can be edited or removed.
To add a new grouping condition:
- Click Add grouping.
- Select the grouping type. Grouping types are listed in the table below.
- If required, choose any settings for the grouping type, then click OK. Settings for each type are listed in the table below. Not all grouping types will require you to choose settings.
Some grouping conditions can be edited by clicking Edit next to the condition. If the condition does not have an edit button, the condition is not editable. You can remove a condition by clicking X to the right of the condition.
Conditions are applied in the listed order, from top to bottom. To change the order, drag a condition by the icon.
The following grouping types are available:
Option | Description |
Selection A/B |
Clashes are grouped based on physical objects. All clashes that include the same object from selection A or from selection B go into a single group. For example, if selection A includes pipes and a specific pipe crosses several walls, grouping by selection A would combine all those clashes together. The name of that pipe object will be included in the group name.
|
Level |
Clashes are grouped based on level. Clashes that don’t belong to any level go into the "No level" group. This will default to using project levels, but you can edit this condition to use either project levels or custom levels which can both be edited. To learn how to configure levels, see Level model. |
Grid intersection |
Clashes are grouped based on the nearest grid intersection. Clashes that don’t have grid intersections nearby go into the "No grid" group. This will default to using project grids, but you can edit this condition to use either project grids or custom grids which can both be edited. To learn how to configure grids, see Grid models. |
Room | Clashes are grouped by room. Clashes that don’t belong to any room go into the "No room" group. |
Area | Clashes are grouped by area. Clashes that don’t belong to any area go into the "No area" group. |
Zone |
Clashes are grouped by zone. Clashes that are not located inside a zone will receive the zone information from the nearest zone beneath them. Clashes that are not in a zone, and have no zones beneath them will join a “No zone” group. You can edit this condition to select the search sets with the zones you wish to group by. |
Space | Clashes are grouped by space. Clashes that don’t belong to any space go into "No space" groups. |

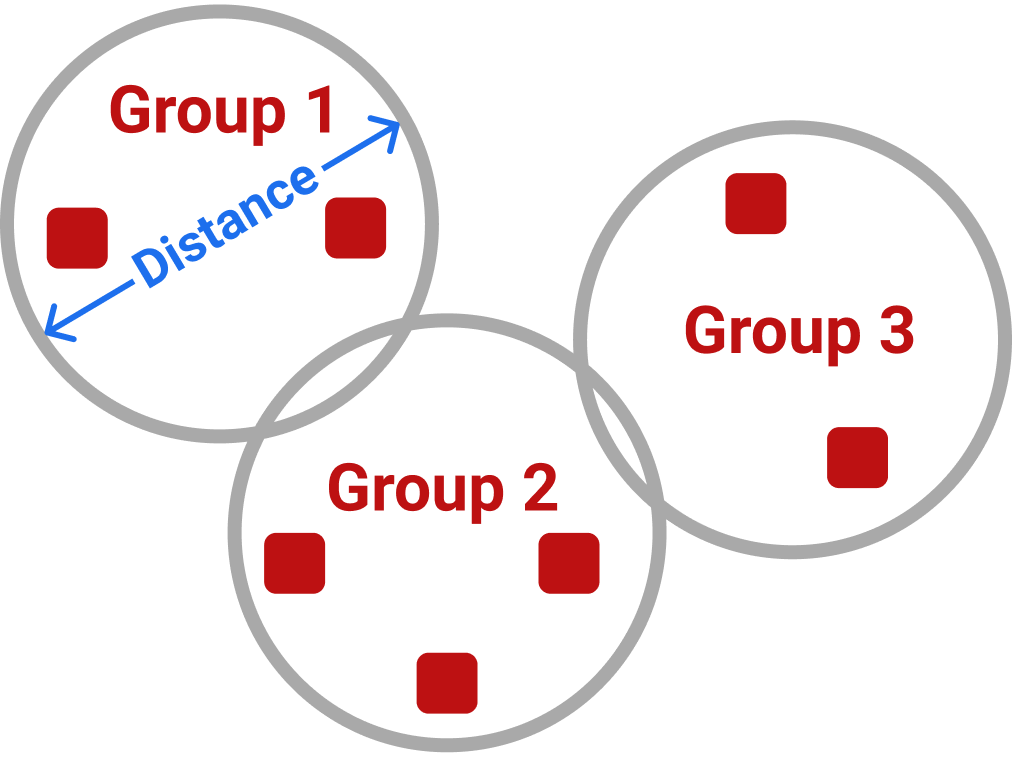

Proximity |
Clashes are grouped when they form a cluster where the distance between any two clash points does not exceed the value set in the Distance field. Some clashes that are close to each other might go into different clusters, as shown in the figure below.
To set up proximity grouping type, input your desired value in the Distance field to set or change the proximity condition, then click OK. |

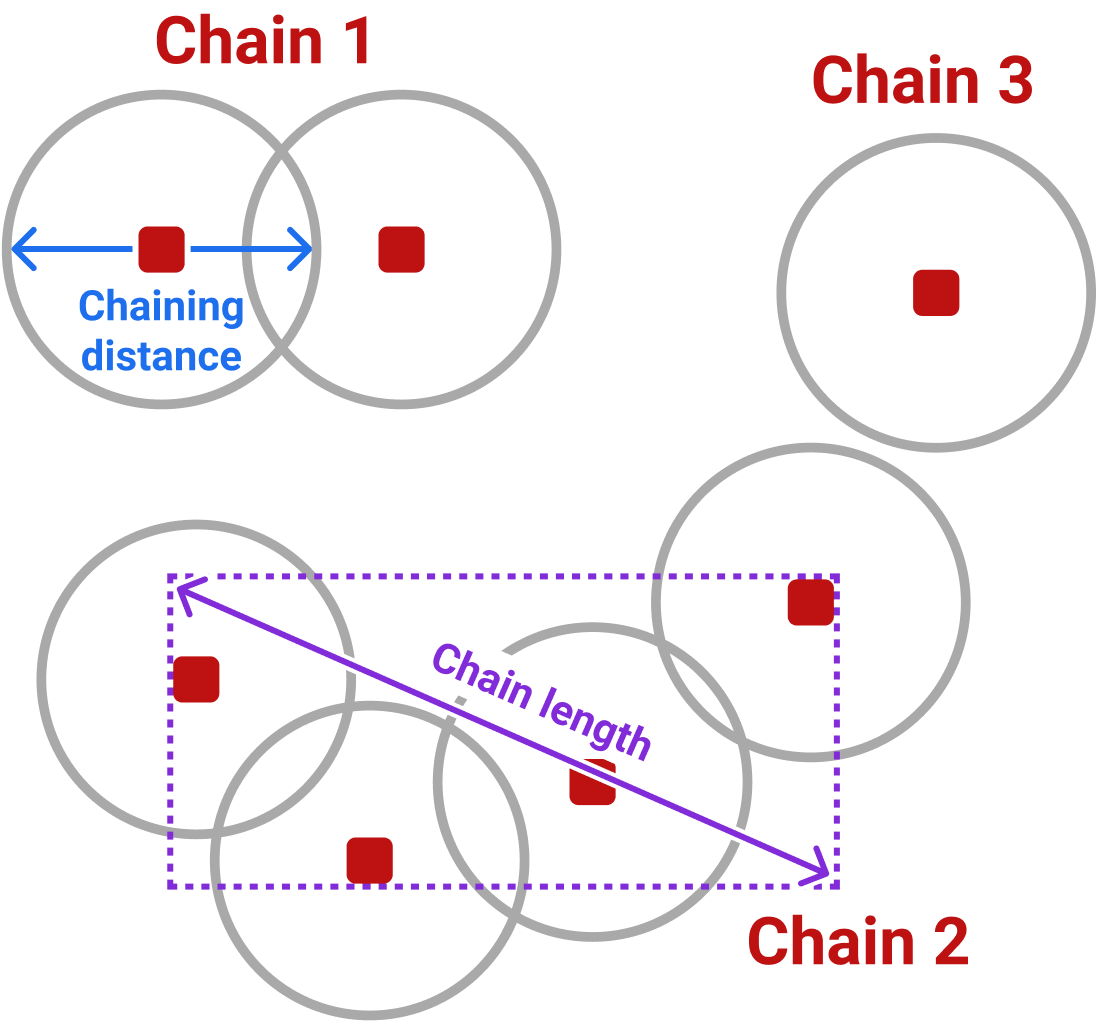

Chained proximity |
Clashes are grouped if they form a chain where the distance between adjacent clash points does not exceed the value set in the Chaining distance field. Chains can include multiple branches. The value set in the Max chain size field sets the upper limit for a chain size. When a chain exceeds this value, it is split into shorter chains. A chain size is the distance between the two opposite corners of the smallest box that surrounds all clash points as shown in the figure below. The proximity type can be switched between "Regular" and "Chained" from the dropdown menu. "Regular" switches the grouping condition to Proximity. To set up chained proximity grouping type, input your desired values in the Chaining distance and Max chain size fields to set or change the chained proximity condition, then click OK. |
Property condition |
Clashes are grouped based on a property of an element or geometry. All elements or geometries that have the same property value go to the same group. Clashes that don't have a selected property or value go into the "No value" group. To set up property condition grouping type, choose a property category from the Select category dropdown menu and a property name from the Select property dropdown menu. Then select the object type (element or geometry) and clashing selection.
|
Combine all clashes into one group | All clashes are added to a single group. If you select this option, do not add other grouping criteria. |

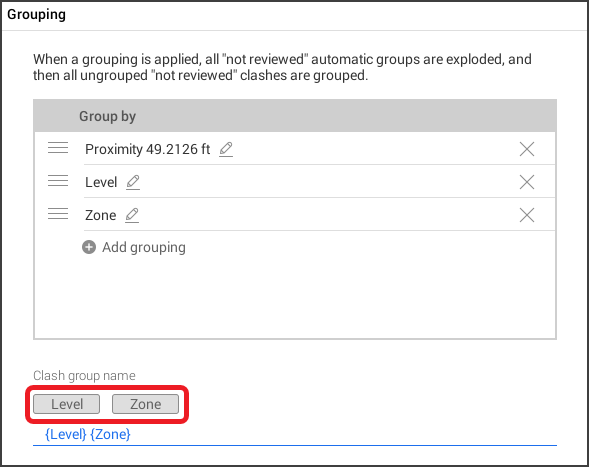

Clash group name
Clash group names are based on the chosen grouping conditions. Most conditions will automatically add a placeholder to the Clash group name field. Words in braces {} are placeholders that will be replaced with the parameter values. For example, {Room} will be replaced by a room name.
While certain conditions will add placeholders to the name field, the Clash group name field is fully editable. You can edit the clash group name by adding and removing placeholders or using custom text:
- To add a placeholder, click the placeholder's button above the Clash group name field.
- To remove a placeholder, put the cursor in the Clash group name field and delete the placeholder.
- To add custom text, type it in the Clash group name field.
The clash group name will become part of the issue’s title when it is synced to the issue tracker.

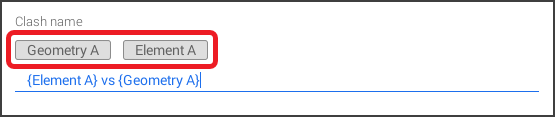

Clash name
Clash names are based on the names of the clashing elements or geometries. A mixture of Element A, Element B, Geometry A, and Geometry B placeholder buttons will be available depending on the clashing type. Clicking a placeholder will add it to the Clash name field. Words in braces {} are placeholders that will be replaced with the names of elements or geometries. For example, {Element A} will be replaced by the name of the element A in the clash.
The default clash name is "{Element A} vs {Element B}" (or "{Element}" for "Object A requires object B" clashing types), however the Clash name field is fully editable. You can edit the clash name by adding and removing placeholders or using custom text:
- To add a placeholder, click the placeholder's button above the Clash name field.
- To remove a placeholder, put the cursor in the Clash name field and delete the placeholder.
- To add custom text, type it in the Clash name field.
You can use location tags to help identify and categorize clashes. All location tags are added to clashes by default. Available location tags include: level, room, space, Revizto zone, area, and grid intersection.
Location tags that are in use will be listed in the "Location tags" field. Tag selections can be edited by clicking Settings in the upper-right corner of the field. Click OK at the bottom of the window to save changes.
To change the location tags for a clash test:
- Deselect Calculate all location tags. This will be selected by default.
- Select the location tags you want to use. Location tags are listed in the table below.
- Click OK.
If your clash test includes a grouping by a location tag (Cash grouping conditions), that location tag is always added to clashes, regardless of the settings that you specify here.
Option | Description |
Calculate all location tags |
Select to add all available location tags to clashes. This includes level, room, space, Revizto zone, area, and grid intersections. This will be selected by default. |
Level |
Tag clashes with levels. For additional options, see Level model. |
Room |
Tag clashes with rooms.
|
Space |
Tag clashes with spaces.
|
Revizto zone |
Tag clashes with zones.
|
Area |
Tag clashes with areas.
|
Grid intersections |
Tag clashes with grid intersections. Depending on the settings in the Grid models section, a clash is tagged with one or several grid intersections that are the closest to the clash point. |
You can choose the settings for the default clash viewpoint and clash issue screenshots in this section. Clash viewpoint and issue screenshot selections can be edited by clicking Settings in the upper-right corner of the field. Click OK at the bottom of the window to save changes.
Clash viewpoint and issue screenshot are managed by the following settings groups:
- Clash color settings
- Section box settings
- Camera settings
- Issue screenshot settings
- Issue sync settings
Clash color settings
This section contains the settings for the colors of clashing elements. Each clashing element is given a color in clashes to better illustrate the clash.
Colors are set for the following elements:
- Selection A: Clashing elements from selection A. This defaults to red.
- Selection B: Clashing elements from selection B. This defaults to green.
- Resolved/Approved: All elements from resolved and approved clashes. This defaults to blue.
The "resolved/approved" color is only used when the Issue screenshot settings > Clash Colors option is set to "3 colors".
To edit any of the colors, click either the color or Edit next to the element then choose your desired color.
Section box settings
This section contains the settings for the section box for the default clash viewpoint which is built around the intersection point of the clash. The section box will always be oriented XY, with no option to control or change the orientation.
To change the section box settings, select the section box fit from the dropdown menu:
- Fit to clash: Section box tries to include the clashing objects based on the intersection points. This might be limited based on level if the Box height is defined by neighboring level option is used.
- Fit to level: Section box boundaries are determined by the levels and offsets around the intersection points of the selected clashes.
After selecting the section box fit, adjust the individual settings to refine the section box. These settings are different for each fit style, as described in the table below.
Option | Settings |
Fit to clash |
Default section box size limit This parameter limits the size of the clash section box.
You can edit this value to make the default box size limit smaller. The box size limit cannot, however, be increased above the default value even if you input a higher value (larger size). Box height is defined by neighboring level Select this to align the top and bottom faces of the viewpoint section box with the neighboring levels (above and below). The box height will be adjusted after the limit is applied. |
Fit to level |
This setting will default to using project levels, however you can change this to use custom levels (if configured) or edit the levels by clicking Edit Horizontal size of the section box is defined by the following model Select a model from the dropdown menu to specify a model to define the horizontal side of the section box. This will default to "All models". Section top/bottom offset Input an offset measurement for the top or bottom of the section box in these fields. |
Camera settings
This section contains the settings for the camera focus, angle, and zoom on the clash.
Option | Description |
Focus | Select the camera focus for clash viewpoints.
|
Camera direction | From the dropdown menu, select the direction you want for the camera position when creating the clash viewpoint.
|
Default zoom factor | Move the slider to choose whether you want the default clash viewpoint to be more zoomed in or zoomed out. This setting will default to the middle. |
Issue screenshot settings
This section contains the settings that affect the clash issue screenshots. You will not see the issue screenshots when reviewing clashes in clash automation. The screenshots are generated during the clash detection and during the sync with the issue tracker.
Option | Description |
Appearance | This is the appearance applied to the 3D model when a clash issue screenshot is taken. To edit the appearance, select an appearance type from the dropdown menu.
|
Clash Colors |
This setting defines how clashing elements are highlighted. To edit the clash color profile, select an option from the dropdown menu.
You can select the colors for each element in the Clash colors field at the top of this dialog. |
Isolation | This setting defines whether clashes are isolated.
|
Transparency |
This setting defines the transparency of clashing elements.
We recommend making the larger of the two clashing objects transparent. For example, if selection A contains pipes and selection B contains walls, we recommend making selection B transparent. |
Apply section box |
Select this to apply the section box from the clash viewpoint to the 3D model when the screenshot of that clash is taken. If you clear this checkbox, no section boxes are applied. We recommend that you select this checkbox for faster screenshot generation. |
Show grids |
Select this to make clash grids visible on clash issue screenshots. To learn how to configure clash test grids, see Grid models. |
Issue sync settings
This section contains the settings for how clash issue screenshots and clash viewpoints are updated during the clash detection. To edit a setting, select an option from the dropdown menu.
Option | Description |
Update screenshots |
This setting defines which issue screenshots are updated during clash detection.
Keep in mind that screenshot generation takes time. "None" will be the fastest option during clash detection, while "All" is the slowest. |
Update viewpoint |
This setting defines which issue viewpoints are updated during clash detection.
|
You can set issue automation in this section. These are the rules and conditions that govern what issues are created when syncing with the issue tracker. If issue automation has been used to set up an issue template, the issue fields and their settings will be listed in the "Issue automation" field.
You can edit, add, and remove issue automation rules and settings by clicking Settings in the upper-right corner of the field. From here you can switch between simple and advanced issue automation. Click OK at the bottom of the window to save changes.
We recommend using simple issue automation for your first clash tests. Once you are familiar with simple issue automation, you can switch to advanced issue automation for more flexibility.
Changing issue automation settings will only affect new issues generated from the clash test. Existing issues will not be affected by any changes.
General issue automation settings
These issue automation settings apply to all clash groups from the clash test and are available in both the simple and advanced automation windows.
Option | Description |
Sync clash groups with the following statuses |
This setting defines whether clash groups that have the "Not reviewed" status are synced with the issue tracker.
|
Add clash group number to the issue name | If this is selected, the clash group number (the value in the "#" column in the clash test results) is added to the issue name. |
Simple issue automation
Simple issue automation is used to create an issue template for all issues created from the clash test. This will be listed in the "Issue automation" field in the clash test's settings and will be the "Default issue values" if you use advanced issue automation. You do not need to fill in every issue field to set up simple issue automation.
- To edit an issue field, click Edit
to the right of the field name. Issue fields are described in the table below.
- To return a field to its default or inherited value, open the field for editing then click Reset or Restore. If a field value is inherited from a stamp template it will be marked with the
icon next to the field name.
If a stamp has been assigned, resetting any other field will return that field to the value inherited from the stamp. It will not clear the field entirely. To clear all fields associated with a stamp template, reset the Stamp field.
Option | Description |
Stamp |
Select a stamp template to apply to new issues generated from the clash test. The stamp template's issue fields will be applied to the issue template here.
To clear an applied stamp template and all associated fields, open the stamp field for editing then click Reset. |
Type |
Select the issue type you want associated with new issues generated from the clash test. This will control the available statuses for the issue. For more information on issue types and statuses, refer to Managing custom issue statuses. |
Priority |
Select the priority of new issues generated by the clash test.
|
Deadline |
Set the deadline for new issues generated by the clash test. To set a deadline, input the value, select the timeline (days, weeks or months) by toggling the options, then click Apply. The weeks and months specified here are calendar weeks (starting on Monday) and calendar months. For example, if you specify a 1-week deadline, the actual deadline is set to the next Monday.
|
Assignee |
Select an assignee for new issues generated by the clash test.
|
Watchers |
Select watchers for new issues generated by the clash test. Multiple watchers can be added.
|
Tags |
Add tags to new issues generated by the clash test.
To add a tag:
Tags that are inherited from a stamp template cannot be removed, however any other tags can be removed.
|
You can switch to advanced issue automation at the bottom of the window by clicking Switch to advanced automation. Advanced automation adds the option to create multiple issue generation rules that include a condition governing when the rule is applied. The issue template configured in simple issue automation will become the default issue rule applied when none of the conditions in advanced issue automation are met.
Advanced issue automation
Advanced issue automation allows you to configure location filters and multiple issue generation rules for a single clash test. Each rule is listed under "Conditional values" and is built on an "If/Then/Otherwise" model that includes the following fields:
- IF: A condition that is checked for each clash group.
- THEN: An action that is performed when a clash group meets the condition. The action will be to either "Create an issue" which is based on a specific template, or "Don't create an issue".
- OTHERWISE: An action that is performed when a clash group does not meet the previous condition. The action will be to either "Create an issue" which is based on a specific template, or "Don't create an issue".
The order of the rules determines issue creation. When syncing with the issue tracker, for each clash group, Revizto applies any location filters, then the first rule where the conditions are met, then skips the rest of the rules. If a rule's conditions are not met, Revizto will proceed to the next rule until it finds one where the condition is met or it gets to the final "Otherwise" condition which is populated with the "Default issue values" if it creates an issue.
To change the position of an issue automation rule, drag a rule by the icon in the upper-left corner of the condition to the desired position.
Only rules with the grey headers can be moved. The "Default issue values" and final "Otherwise" field cannot be moved.
You can switch to simple issue automation at the bottom of the window by clicking Switch to simple automation, however this will remove all advanced issue automation conditions. If you just want to edit the default values without removing advanced issue automation, click Edit next to the relevant issue fields under "Default issue values". This will also change the fields in the final "Otherwise" condition if it creates an issue.
Filter by location
Location filters allow you to limit the issues created from the clash test by specific locations in the project. Multiple location types can be added as filters, including level, room, space, zone, and area. Filter by location can be used by itself, without setting any conditional values or alongside conditional values.
Locations must be set up in the project to use "Filter by location".
To add a location filter:
- Click Add filter.
- Select the location type (by level, room, space, zone, or area).
- At the top of the filter window, select Include or Exclude. This will define whether an issue is created (Include) or not (Exclude) based on the location.
- Select the checkboxes next to the locations you want to filter by.
- Select the issue creation criteria. This will determine how many clashes in a clash group must match the filter location in order to create an issue: at least one clash from the clash group or all clashes in the clash group.
- Click OK to save your filter.
A filter for each location type can be added. Existing filters can be edited by clicking Edit next to the filter. To delete a filter, click X to the far left of the filter.
"Filter by location" settings can be imported into other clash tests independently of other issue automation rules.

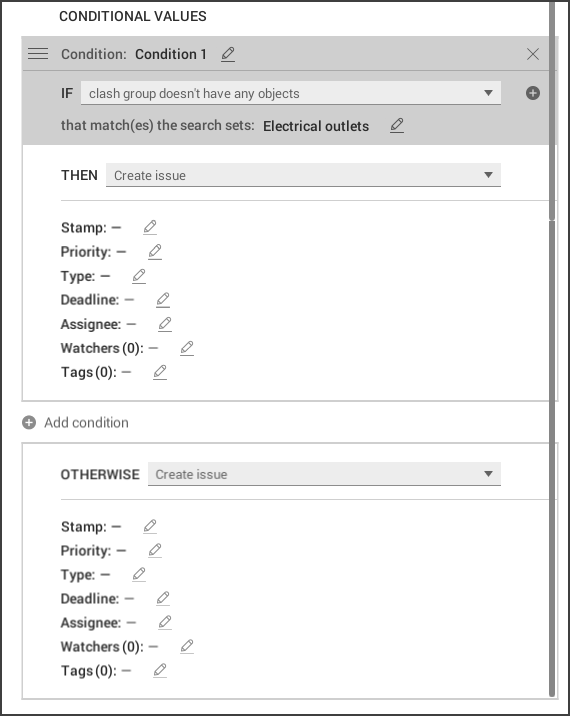

Conditional values (issue automation rules)
Issue automation rules can be edited, added, and deleted under the "Conditional values" section. Any part of a rule can be edited by clicking Edit or the field's dropdown menu. When adding a condition, the issue template will automatically populate with the "Default issue values", however these can be edited within each condition.
To add an issue automation rule:
- Under "Conditional values", click Add condition. This adds a placeholder for a conditional rule and a final "Otherwise" condition.
- If you want to name the rule, click Edit
next to "Condition".
- In the IF field, select a condition type from the dropdown menu.
- If a condition includes "objects A" or "objects B", it is checked only for objects from Selection A or Selection B.
If the test's clashing type is "Object A requires object B", selecting an object B here will not do anything. In "Object A requires object B tests, only resolved clashes will have both object A and object B.
- In the that match(es) the search sets field, click Edit
and select one or several shared search sets. If you have many search sets, you can search for partial names or use the following wildcards:
- * any number of characters
- ? any characters
- If you want to add a second part to the condition, to the right of the IF field, click Add
and select a condition type and matching search set.
- Condition parts are joined with either the operator AND (the condition is true when both its parts are true) or OR (the condition is true when at least one of its parts is true). Click the operator to toggle between them.
- In the THEN field, select the action from the dropdown menu.
- If you select "Create issue", you can specify some of the issue fields. Edit a field by clicking Edit
to the right of the field name. For descriptions of these fields, see Simple issue automation.
- If you select "Create issue", you can specify some of the issue fields. Edit a field by clicking Edit
- If you want to add additional rules (conditions), click Add condition and follow steps 1-6 to create the condition.
- In the final OTHERWISE field, choose an action from the dropdown menu.
- If you select "Create issue", you can specify some of the issue fields. Edit a field by clicking
to the right of the field name. For descriptions of these fields, see Simple issue automation. Editing an issue field here will change that field in the "Default issue values".
The final "Otherwise" field is the final rule that is executred if all previous rules cannot be executed. It cannot be moved or deleted.
- If you select "Create issue", you can specify some of the issue fields. Edit a field by clicking
- Click OK to save your advanced issue automation settings.
To delete a rule or condition, click X to the far right of the rule or condition. The last condition (the final "Otherwise" field) is only deleted when the last rule is deleted.
This section lists the project members and their rights in the clash test. Project administrators and users with the “Clash administrator” access right can view, edit results, and edit settings for all clash tests in the project. The clash test access rights for these users cannot be changed here. Additional users may have access rights granted to them in a specific test from this setting. For more information on available clash test access rights, see Clash test access rights.
Users with access rights to the clash tests and the privacy settings of the test will be listed in the "Access rights" field. Some access rights settings can be edited by clicking Settings in the upper-right corner of the field. Click OK at the bottom of the window to save changes.
To edit a project member's access rights in the clash test:
- Select the project members whose access right you want to edit. Some project members, such as project administrators, cannot have their clash test access rights changed.
- Click More
in the upper-right corner of the field.
- Select the new role for the project member from the available options.
The user's clash test role will be automatically saved.
You can also set the privacy of the clash test using the Clash test privacy dropdown menu:
- Private: The clash test will only be visible to project members with a project administrator role, "Clash administrator" rights from their project role, or the "Test administrator" or "Test results editor" role in the specific clash test.
- Public: The clash test will be visible to all project members with the "View public clash tests" access right as well as project members with any administrator roles or the "Test administrator" or "Test results editor" role in the specific clash test.
This section contains the labels assigned to the clash test which can be used for filtering. Active labels will be listed in the "Labels" field. To add or edit labels:
- Click Settings
in the upper-right corner of the field to open the labels menu.
- Create, edit, or remove labels.
- To create a label, type the label name, then select the checkbox next to it.
- To add an existing label, select the checkbox next to it.
- To remove a label, clear the checkbox next to it.
- To remove all labels, click Clear selected items.
- Click Apply.
Multiple labels can be added or removed at a time. Removing a label will not delete it from the entire project as, currently, labels cannot be deleted from a project.
This section contains the settings for the levels that are used as location tags in the clash test. The level model will be listed in the "Level model" field. Levels can be edited by clicking Settings in the upper-right corner of the field. Click OK at the bottom of the window to save changes.
When setting levels to use as location tags, there are two options:
- Use project levels: The clash test uses the levels defined in the project.
- Use custom levels: The clash test uses levels chosen for the clash test. You might want to use this option if your project includes several buildings, each with its own levels.
To edit either level option, click the edit or configure button then choose the level settings described in the table below.
Edits to project levels apply to the entire project.
Option | Description |
Model to use the levels from | Select a model to provide the levels. |
When adding location tags to clashes | Select the method to define the clash level.
|
This section contains the settings for the grids that are used as location tags in the clash test. The grid model will be listed in the "Grid models" field. Grids can be edited by clicking Settings in the upper-right corner of the field. Click OK at the bottom of the window to save changes.
When setting grids to use as location tags, there are two options:
- Use project grids: The clash test uses the grids defined in the project.
- Use custom grids: The clash test uses grids chosen for the clash test.
To edit either grid option, click the edit or configure button then choose the grid settings described in the table below.
Edits to project grids apply to the entire project.
Option | Description |
When adding location tags to issues or clashes | Select the method to define the closest grid intersections for the clash.
|
Select the models to use the grids from | Select the models that provide the grids. |
Comments
0 comments
Article is closed for comments.
